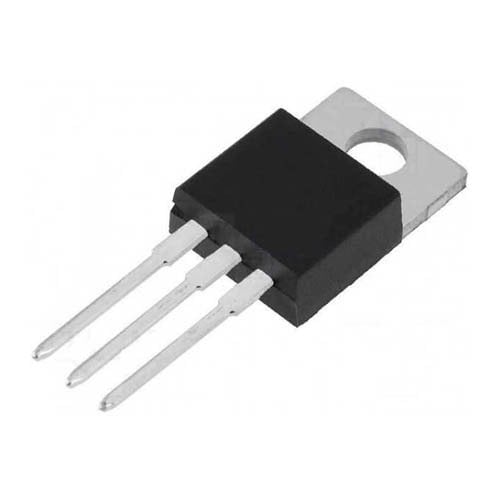

LM338T Regülatör Ayarlanabilir 5A LM338 TO-220 (1 Adet)
6,05 TL Kdv Dahil
0,68 TL den başlayan
taksitlerle!!
taksitlerle!!
Kategori
Marka
Stok Kodu
HELM338T
Havale/EFT Fiyat
5,87 TL
(%3,00 havale indirimli. KDV Dahil)
- Status: Transferred
- Regulator Type: ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR
- Dropout Voltage: 1-Nom 3 V
- Input-Output Voltage Differential-Min: 3 V
- Input-Output Voltage Differential-Max: 35 V
- JESD-30 Code R-PSFM-T3
- JESD-609 Code e0
- Line Regulation-Max (%/V) 0.0600
- Load Regulation-Max(%) 1 %
- Moisture Sensitivity Level: 1
- Number of Functions: 1
- Number of Outputs: 1
- Number of Terminals: 3
- Operating Temperature, TJ-Min 0.0 Cel
- Operating Temperature, TJ-Max 125 Cel
- Output Current1-Max: 5 A
- Output Voltage1-Min: 1.2 V
- Output Voltage1-Max: 32 V
- Package Body Material: PLASTIC/EPOXY
- Package Equivalence Code: SIP3,.1TB
- Package Shape: RECTANGULAR
- Package Style: FLANGE MOUNT
- Peak Reflow Temperature (Cel): 260
- Qualification Status Not Qualified
- Sub Category: Other Regulators
- Surface Mount: NO
- Technology: BIPOLAR
- Terminal Finish: Tin/Lead (Sn/Pb)
- Terminal Form: THROUGH-HOLE
- Terminal Pitch: 2.54 mm
- Terminal Position: SINGLE
- Time@Peak Reflow Temperature-Max (s)
